Animation design
Here’s the final animation:
See the Pen Google SVG Logo - GreenSock Animation by Petr Tichy (@ihatetomatoes) on CodePen.
The whole animation sequence can be broken down into 3 parts:
- Wave animation of the dots
- Rotate the dots
- Dots into the letter “G”
- From “G” back to the dots
Wave animation of the dots

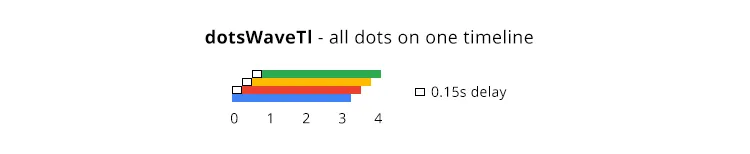

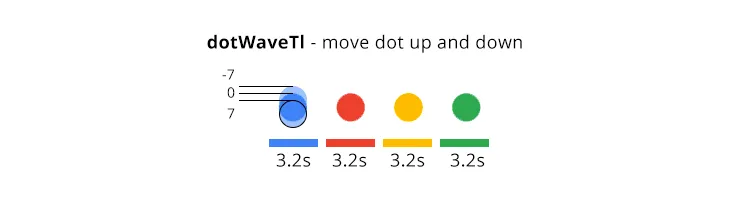

Each dot has its own timeline, dotWaveTl that moves it to y: -7, y: 7 and then back to y: 0. All four timelines are then inserted onto a main timeline, dotsWaveTl, with a slight delay.
Dots into the letter “G”
Steps:

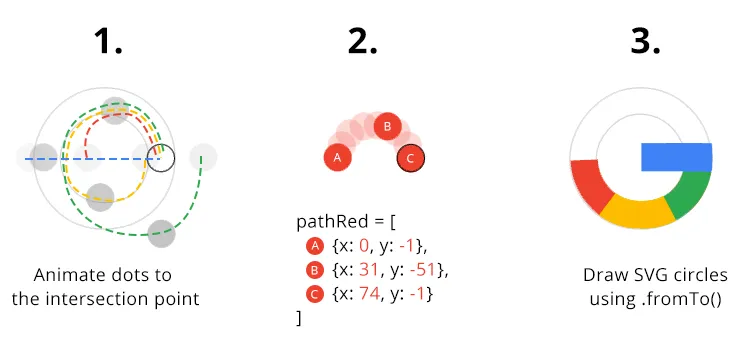

- work out a path for each of the dots
- work out a precise timing for each of the dots
- work out the timing and animation for the straight blue line
- synchronize dots and line animation
From “G” back to the dots
Create the SVG for the animation
Animation prompt in natural language
Wave animation of the dots
Implement a function waveDots with the following steps:
- Wave four dots: dotBlue, dotRed, dotYellow, and dotGreen
- Movement: from y=0 to y=-7 within 0.4s, then from y=-7 to y=7 within 0.8s, then back to y=0 within 0.4s
- Start times: dotBlue starts 0s, dotRed starts 0.15s, dotYellow starts 0.3s and dotGreen starts 0.45s
- Repeat wave twice
Rotate the dots
Implement a function rotateDots with the following steps:
- Rotate the dots: dotBlue, dotRed, dotYellow, and dotGreen
- The path for red dot is: [{x: 0, y: -1},{x: 31, y: -51},{x: 74, y: -1}], duration is 0.9s
- The path for yellow dot is [{x: -41, y: 46},{x: -76, y: 0},{x: -35, y: -46},{x: 14, y: 1}], duration is 1.2s
- The path for green dot is [{x: -67, y: 82},{x: -145, y: 0},{x: -100, y: -46},{x: -43, y: 3}], duration is 1.5s
Dots into the letter “G”
Create an animation function called `dotsIntoG` for our Google 'G' logo SVG:
TIMING MAP:
0.0s - Start: .dotBlue moves right (47px, 0.6s)
0.7s - .dotBlue fades out
0.5s - #gLineAnim sweeps in from left (-120px, 0.8s)
1.0s [startDrawingG] Main sequence:
1. #redG:
- Appears at startDrawingG
- Draw (71-88% → 0-26%, 0.5s duration)
- Start drawing -=0.2 (0.2s before its scheduled time)
2. #yellowG:
- Appears at startDrawingG+0.1s
- Draw (71-88% → 17-36%, 0.6s duration)
- Start drawing -=0.45 (0.45s before its scheduled time)
3. #greenG:
- Appears at startDrawingG+0.1s
- Draw (71-88% → 36-61%, 0.55s duration)
- Start drawing -=0.6
4. #blueG:
- Appears at startDrawingG+0.3s
- Draw (71-88% → 61-78%, 0.55s duration)
- Start drawing -=0.55

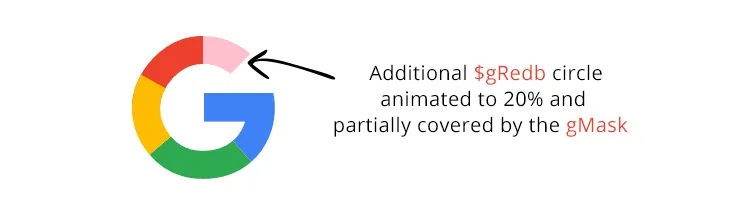

5. #redGb:
- Appears at startDrawingG+0.25s
- Draw (100% → 80%, 0.7s duration, rotates -10° → 0°)
- Start drawing -=0.22
Dots fade times (from startDrawingG):
- .dotRed: at start
- .dotYellow: +0.1s
- .dotGreen: +0.4s
Line transition (from startDrawingG):
- #gLineAnim fades out at +0.3s
- #gLine appears at +0.3s
From “G” back to the dots
Create a GSAP animation function called `getBackToDots` for transitioning elements back to dots. The animation should:
1. Animation sequence should:
a. Start with a blue line retraction:
- Move '#gLineMask' x attribute 365px in 0.3s
- Hide '#gLineMask' and '#gLine' elements

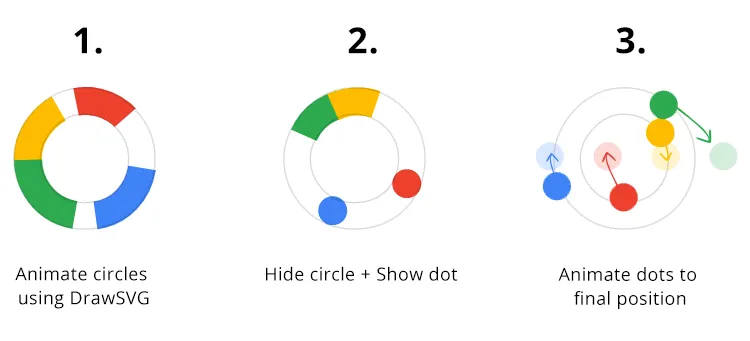

b. Transform colored segments to circles with drawSVG:
- '#blueG': 56% to 78%
- '#greenG': 31% to 56%
- '#yellowG': 12% to 31%
- '#redG': 0% to 21%
All in 0.3s with Power0.easeNone
c. Rotate colored elements:
- Rotate '#blueG', '#redG', and '#greenG' segments 50 degrees
- Modify '#greenG' drawSVG to 10%-20%
- Rotate '#yellowG' 40 degrees and drawSVG to 0%-10%
- Adjust '#blueG' drawSVG to 50%-60%
- Collapse '#redG' drawSVG to 0%
- Rotate '#redGb' with 50 degrees and drawSVG 80%-90%
d. Sequential dot transitions:
- '.dotRed': Show at (60, -37), follow [{x: 60, y: -37}, {x: 50, y: 40},{x: 0, y: 0}]
- '.dotBlue': Show at (51, 53), follow [{x: 51, y: 53}, {x: 15, y: 25},{x: 0, y: 0}]
- '.dotYellow': Show at (-5, -44), follow [{x: -5, y: -44}, {x: 3, y: -24},{x: 0, y: 0}]
- '.dotGreen': Show at (-108, -56), follow [{x: -108, y: -56}, {x: -27, y: -47},{x: 0, y: 0}]
e. Final mask rotation:
- Rotate '#gMask' 60 degrees with origin at -9 58
2. Technical requirements:
- Use TimelineMax
- Implement proper timing with labels 'rotateG' and 'rotateCircles'
- Use Power0.easeNone for smooth transitions
- Use Power2.easeInOut/Out where specified
- Return the timeline object
Generate Animate code
Improvements and Challenges
- adjust the timing of the dots into G animation
- describe the animation in more detail
- know the animation technique, such as easing.
- iterate on the animation prompt
- GPT generates the wrong timing, such as: the -= timing means each drawing action starts before its natural sequence point, creating the overlap effect with the previous actions rather than being absolute times from startDrawingG.
- Provide a prompt template for the animation, such as: svg elements, steps to describe the animation, timing map, and animation function name.
